Surface Pro Removable SSD: Which Models Have One, How to Replace It and How to Rescue Your Data

Which Surface Pro models have a removable SSD? The model table

Microsoft's own SSD removal guide lists these Surface Pro models as compatible: Pro 7+, Pro 8, Pro 9, Pro 9 with 5G, Pro 10, Pro 10 with 5G, Pro 11th Edition (Snapdragon) and Pro X. The original Surface Pro 7 is not on that list. That list is the one that matters, because it comes from the manufacturer's service documentation, not from a forum guess. Use the table below as your starting point, then confirm your exact unit under the kickstand.

Two sentences of honesty about this table. First, "removable" in Microsoft's language means a service-door drive that a skilled technician can swap, labeled rSSD. Second, Microsoft's guide describes itself as intended for qualified IT technicians in an organization, and it recommends professional help if you cannot follow its safety procedures. A removable drive is a design convenience, not an invitation to improvise.

Confirm your exact model in 60 seconds

Surface names are confusing: two "Surface Pro 9" units can differ by 5G, and a "Pro 11" can be a consumer or a business edition. Do these four checks in order.

1. Read the model number. Open Settings, then System, then About, and note the device name and, if shown, the model. For the Surface Pro 9 Microsoft's service page identifies the Wi-Fi model as 2038.
2. Check for a SIM slot. A Pro 9 or Pro 10 with 5G has a nano-SIM tray. That tells you to open the 5G service guide rather than the Wi-Fi one.
3. Open the kickstand fully. On the models in the table, the SSD door sits under the kickstand and the drive's size, model and serial are printed there. If you see no door, stop.
4. Photograph the label before touching anything. You will need the capacity to buy a matching drive, and the serial helps with support and warranty questions.

What the little drive actually is

The rSSD is a compact M.2 NVMe solid-state drive in the short 2230 size. Microsoft's Surface Pro 10 and 11 guide calls the connector "a motherboard socket at 15-degree angle", calls the part an "rSSD", and gives the screw as M1.2 by 1.5 mm, 3IP (Torx-plus). The "M.2 2230" label is widely reported by third-party guides for the Pro 9; we treat the form-factor name as reported rather than quoted from Microsoft, but the mechanical facts above are straight from Microsoft's service guide.

Two practical consequences follow. The 2230 length is shorter than the 2280 drives in most laptops, so the choice of retail drives is narrower and often pricier per terabyte. And the drive is protected by a case or shield that you grip at its sides when you lift it out, which is why a spudger and a steady hand matter more than force.

That "Status" column is the honest answer to the question "can I trust this guide". Everything marked reported is the part you should double-check against the service guide for your exact model before spending money.

Should you replace the SSD at all? A decision tree

Replace or move the SSD only when the answer to one of these four questions is yes: you need more space, the drive is failing, the board is dead and you need your files, or you are repairing the device. If none applies, leave the door closed. Every opening of the device is a small risk to the seals and a chance to lose track of a recovery key.

Notice what is missing from the table: "Surface is slow, so I will upgrade the SSD". A new drive of the same capacity rarely changes day-to-day speed on a modern Surface. Slowness usually comes from background apps, a full drive, thermal throttling or a failed update. If speed is your complaint, our guide to SSD versus HDD upgrade and repair cost sets out what an upgrade really changes, and how to speed up Windows 11 covers the free fixes first.

Upgrade compatibility: capacity rules and third-party drives

Here is the rule that surprises people. Microsoft's parts list says the replacement rSSD must be the same size as the original. A 256 GB Surface Pro 9 gets a 256 GB service part, not a 1 TB one. Microsoft's guide repeats it for Pro 10 and 11: only a removable SSD of the same capacity should be installed, "to ensure proper physical and thermal performance".

That is the supported repair path. In practice, many owners fit larger third-party 2230 NVMe drives to get more room, and plenty of guides describe it working. We cannot verify those results ourselves in this article, so treat them as community experience rather than a Microsoft-endorsed upgrade. If you go that way, check these points before you buy:

• Size: the drive must be physically 2230, not 2242 or 2280.
• Interface: NVMe over PCIe, not a SATA-only M.2 drive.
• Thickness and chips: some 2230 drives have components on both sides. A tight service bay may not accept them. Single-sided drives are the safer assumption.
• Heat: the bay is tiny and thermal room is limited, which is one reason Microsoft insists on matching capacity. A very fast drive that runs hot can throttle.
• Firmware and drivers: after install, run Windows Update and check Device Manager for any unknown device.
• Return policy: buy from a seller that accepts returns, because a drive that boots on one board may misbehave on another.

Cloning versus a fresh Windows install

You have two honest ways to get your files onto a new drive. They are not equal, and the right one depends on what is wrong with the old drive.

Our rule of thumb: clone only from a healthy drive, and fresh-install from anything suspicious. A clone copies the problem along with the data, and an unhealthy source drive can turn a clone attempt into a second failure. When in doubt, copy your user folders to an external drive first, then decide. The same reasoning appears in our guide to moving files from an old computer to a new one.

A clone onto a different-capacity drive also raises one more catch: BitLocker ties its protection to the device's security hardware, not just to the files. If the cloned Windows boots and asks for a BitLocker recovery key you do not have, you now have a drive you cannot open. The next sections cover that trap in full, so read it before you pull any screw.

Before you open it: the 10-minute preparation that prevents the disaster

The most expensive Surface SSD mistakes happen before the first screw: no BitLocker recovery key, no backup, and a battery that was not fully powered off. Microsoft's guide puts BitLocker management ahead of the physical steps for exactly that reason. Do these in order.

1. Install updates. Microsoft's guide begins with the latest Windows updates, so firmware and drivers are current before any hardware change.
2. Verify every password you need. Microsoft's guide says to verify any passwords necessary to access the device. That means your Microsoft account password and, if you use one, your Windows Hello PIN fallback.
3. Handle BitLocker. Either turn it off before the move (Settings, search "BitLocker", Manage BitLocker, Turn Off BitLocker), or generate a recovery key and save it to a USB stick (Manage BitLocker, Generate BitLocker Recovery Key). These are the two paths in Microsoft's SSD removal guide.
4. Test that you can read the key on another device. Microsoft's guide notes you will need a second device to read a key saved on USB. Do not take it on faith: open the file.
5. Back up what matters. A backup that lives only on the same SSD is not a backup. See our guide on the difference between data recovery and data backup.
6. Power off fully and let it sit. Microsoft's Pro 10 and 11 guide requires you to power off the device completely, discharge the battery and disconnect all power before starting. Shut down, do not just close the cover.

Tools and workspace

Microsoft's Pro 10 and 11 guide lists the tools for this job, and they are not exotic:

• A 3IP (Torx-plus) driver. A regular Torx driver is the wrong shape and can strip the tiny screw.
• A nylon spudger, to lift the drive's edge.
• An anti-static wrist strap (Microsoft specifies 1 megaohm resistance) and a soft ESD-safe mat.
• A lint-free microfiber cloth to protect the screen.
• A USB drive with the Surface Diagnostic Toolkit and another with the Surface recovery image, both prepared in advance.

Add a small tray for the screw, because a 1.5 mm screw on a carpet is effectively gone. Work on a hard, clean, well-lit surface, away from pets, carpet and fans.

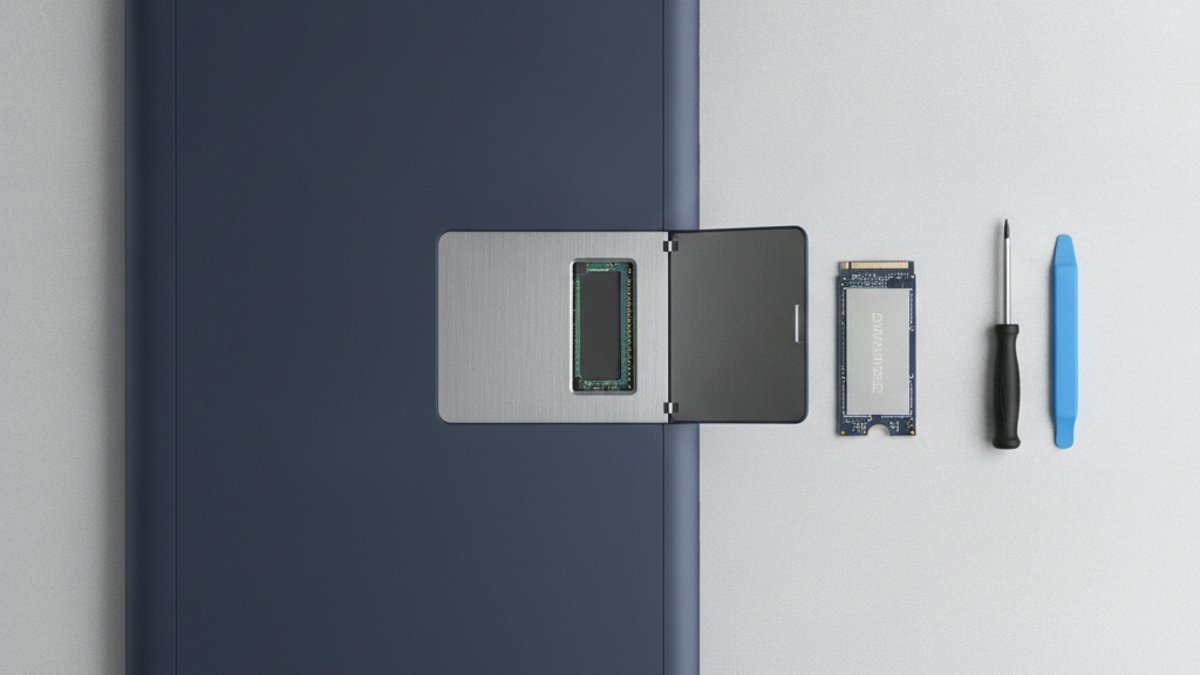

Remove the SSD, step by step (Pro 10 and 11 procedure, other models similar)

These steps follow Microsoft's published Pro 10 and 11 procedure. The Pro 9 and Pro 8 follow the same idea of a door under the kickstand, but the tool for the door and the screw may differ, so read the service guide for your model before you start.

1. Place the Surface screen-down on the soft cloth on your mat.
2. Open the SSD door. On the Pro 10 and 11, press down on the divot on top of the door until it pops open, then lift it out. Do not pry at the metal edge with a knife. On some earlier models, a SIM ejection tool is reported to be the way in, per the Pro 8 note in the table above.
3. Unscrew the drive. Remove the single 3IP screw (M1.2 x L1.5) that holds the rSSD. Put it in the tray immediately.
4. Lift gently. After the screw is out, the drive rises to about 15 degrees. Grip the sides of its case and pull it out of the socket at the same angle. A nylon spudger can help lift it.
5. Do not touch the gold contacts. Hold by the case edges only.
6. Insert the new or transferred drive at the same 15-degree angle into the socket, then lower it flat.
7. Fasten the screw until snug and seated, then, per Microsoft, turn it another 45 degrees (one eighth of a turn). Do not overtighten: a stripped screw head is a repair bill.
8. Refit the SSD door, divot side up, and press until it seats.

Total time for a careful first-timer: 10 to 20 minutes, plus Windows setup afterwards. If your hands shake, or the screw is stuck, stop. A pro with the right bit does it in under five.

First boot after the swap: what you should see

Microsoft's SSD removal guide notes that a device may go through a firmware update at startup, and recommends a wired Internet connection when you power on a device with a moved drive. Expect a slower first boot. After that, three outcomes are possible, and you should know how to read each one.

Microsoft's post-swap checklist is worth following literally: sign in, sign out, sign back in and re-create Windows Hello and the PIN, run the Surface Diagnostic Toolkit, check Activation and check the Office account. That sequence catches most silent problems on day one rather than day thirty.

Dead Surface, files needed: using the removable SSD as a rescue route

A dead Surface does not mean dead data. When the board, battery or charging circuit has failed, the SSD is often fine, and a removable SSD lets you read it from a different computer without repairing the tablet. That is the real value of this design for a normal person, more than any upgrade story. The catch is encryption, which we cover in the next section.

Before touching hardware, sort the symptom. The right move depends on what "dead" means.

Rescue procedure

1. Locate your BitLocker recovery key first (next section). If you cannot find it, removing the drive may not help, so you want to know now.
2. Remove the SSD following the steps above. Keep the drive away from magnets, heat and static.
3. Use a USB enclosure or adapter for M.2 NVMe 2230. Not every enclosure takes the short 2230 length; some need a spacer. Check the size on the product page. We cannot vouch for a specific brand here.
4. Connect to a healthy Windows PC. The drive appears as a locked volume if BitLocker is on. Windows asks for the recovery key.
5. Copy, do not repair. Copy Documents, Desktop, Pictures and app data to another disk. Do not run "check disk" repairs on a drive whose data you need.
6. Verify the copy by opening a handful of important files before you declare victory.

If the drive is not recognized, makes the enclosure disconnect or copies at a crawl, stop. Repeated attempts can reduce what a recovery lab can retrieve later. Our explanation of why SSD recovery is harder than hard drive recovery covers why, and drive not detected: how to recover data shows the staged approach.

The BitLocker recovery key trap, explained plainly

If the SSD is encrypted and you do not have the recovery key, the files are effectively gone, even though the drive is healthy. Microsoft's own Pro 10 and 11 guide says it directly: when swapping drives between devices, you need the user's BitLocker Recovery Key to unlock the drive, and without it the drive cannot be unlocked. This is not a bug, it is the whole point of encryption.

The trap springs in these situations:

• Moving the SSD to another Surface or to a PC to read it.
• Replacing the motherboard, which changes the security chip that held the keys.
• Resetting the firmware or changing boot settings in a way that BitLocker treats as tampering.
• Installing the drive into a new device after the old one has died.

Where to look for the key, in order

1. Your Microsoft account. Sign in from another device and open the page for BitLocker recovery keys on your account. Match the key ID shown on the blue recovery screen to the one listed.
2. A printout or USB file saved when BitLocker was first set up.
3. Work or school account. Your organization's IT may hold it. Ask them before anyone formats anything.
4. A Microsoft Entra or Active Directory record for managed business devices.
5. A password manager or notes app where you pasted it years ago. Search for "BitLocker" and "recovery".

Match the key ID, the first eight characters shown on the recovery screen, to the right key. A key from an old device will not open this drive. If none of these exist, do not erase the drive and do not reinstall Windows: reinstalling destroys the only copy of the data. Call a professional who can tell you honestly whether any path remains. Our article on data recovery after a Windows reinstall explains how quickly overwriting reduces the odds.

Make sure you are never trapped again

• Save a copy of the key in two places: the Microsoft account and a password manager.
• After any hardware change, confirm the key still matches by viewing the key ID.
• Take a backup off the device. Encryption protects against thieves, not against forgetting.
• For business fleets, document the key location in your IT inventory. Our guide to data encryption obligations for small businesses covers the legal angle in Canada.

Three realistic scenarios

Realistic scenario (illustrative, not a real client).

Scenario 1: the Pro 9 that will not turn on

A freelancer's Surface Pro 9 with a 256 GB drive stops charging overnight. The charging light never comes on with a known-good charger. She signed in with a Microsoft account, so the recovery key is on her account. She removes the SSD in 15 minutes, uses a 2230 USB enclosure on a friend's PC, enters the key and copies 41 GB of client files. The tablet itself needs a board repair, which she decides not to do. Total outlay for the rescue: the enclosure, roughly CAD 25 to 45 (estimate). The files survive; the tablet gets recycled.

Scenario 2: the 128 GB Surface that ran out of room

An accountant's Pro 8 with 128 GB is at 97% full. Microsoft's parts list rules call for the same capacity, but he wants 512 GB. He knows that is a community-reported upgrade, not an endorsed one. He backs up to an external drive, saves the BitLocker key, fits a third-party single-sided 2230 drive and installs Windows from a recovery image. First boot takes eight minutes. He restores files from the backup and runs the Surface Diagnostic Toolkit. It works, but he accepts that Microsoft support will not stand behind a third-party drive.

Scenario 3: the dead Pro with a failing drive

A small clinic's Surface freezes, then reports disk errors, and files begin to vanish from a folder. The owner wants to run repair tools. Our advice: stop, power off, and image the drive rather than repair it. Repair tools write to a failing drive. He pulls the SSD, connects it to an enclosure, copies what opens and gives the rest to a recovery lab. Because the drive was backed up weekly, only two days of work are at risk.

Reinstalling Windows on a new or blank Surface SSD

A replacement removable SSD from Microsoft ships without a Windows image, so a blank drive needs Windows installed from a Surface recovery image on a USB drive. Microsoft's Pro 10 and 11 guide says exactly that and points to its Surface imaging tools for restoring the factory image, followed by the Surface Diagnostic Toolkit to confirm everything works.

The recovery image is the safest route because it is built for Surface hardware and includes the right drivers. Here is the practical order of operations:

1. On another PC, download the recovery image for your exact model from Microsoft's Surface recovery image page. It asks you to sign in and enter the device serial number. Search Microsoft's site for "Surface recovery image" and use only the official page.
2. Prepare a USB stick as the instructions describe. It must be large enough for the image, and the stick will be erased.
3. Insert the stick into the Surface with a wired or reliable Internet connection available for updates.
4. Boot from USB. With the device off, hold the volume-down button and press the power button until the Surface logo shows, then release power while still holding volume-down. This is the common Surface method; confirm in Microsoft's current boot-from-USB page.
5. Follow the recovery prompts and choose the language and keyboard.
6. Complete Windows setup, sign in, run Windows Update until it stops offering updates, then run the Surface Diagnostic Toolkit.
7. Check Activation under Settings, System, Activation.

If you only need to reset Windows and the drive is healthy, you may not need hardware or an image at all. See our guide to how to factory reset a laptop and how to reset Windows, and remember that a reset erases your files.

Warranty: what we can say, and what we cannot

We did not verify Microsoft's current warranty wording for opening the SSD door, so do not treat this section as a legal answer. What we can state from Microsoft's documentation: the SSD door and the removable drive are published, documented service parts. Microsoft sells genuine replacement parts directly and through a partner, and publishes service guides for them. Microsoft's guide also says it is intended for qualified IT technicians and recommends professional help if you cannot follow the safety procedures.

What follows is common sense, not a policy quotation:

• Opening a documented door is very different from prying the display or battery off. The first is a designed service step. The second is likely to be treated as damage.
• Damage you cause while working (a stripped screw, a bent connector, static damage) is unlikely to be covered by a warranty, whoever made the device.
• A third-party SSD is a part Microsoft did not supply. If something later goes wrong, a support agent may ask you to put the original drive back.
• Business devices may be under lease or an enterprise agreement with its own terms.
• Keep the original drive in an anti-static bag. It is your warranty insurance, and your data's fallback.

Before you open a device under warranty, read the Microsoft warranty terms for your region and, if in doubt, ask Microsoft support in writing whether opening the SSD door affects coverage. Save the reply.

What it costs in Canada: DIY versus paying for help

The honest range for a DIY SSD job is a few dozen dollars for tools plus the drive; the biggest cost is time and risk, not parts. The figures below are planning estimates in CAD, not quotes. Prices change, we did not scrape a store for them, and Microsoft's own part prices were not verified, so check current prices.

If you are comparing against buying a replacement computer, remember that a rescued SSD costs roughly the same as an enclosure while a lost project can cost far more. For the broader picture of whether to repair or replace, read refurbished versus new computer buying guide.

Myths to drop

• "A new SSD makes the Surface much faster." Rarely, if the old drive is healthy.
• "I can put in any M.2 drive." No. Length 2230 and NVMe are the minimum.
• "Removing the SSD wipes it." It does not. The data stays, still encrypted.
• "BitLocker is optional, so I will not need the key." It may be on without you ever choosing it.
• "A cloned drive always boots." Not if it is encrypted or the source was failing.
• "Dead Surface means lost data." Often the SSD is fine.

Printable checklist before you start

When to call a pro

Call a professional when the data matters and the drive misbehaves, when there is no recovery key, when there was liquid or a swollen battery, or when you are not comfortable working with a 1.5 mm screw. A technician can check your exact model, advise you before you touch anything, and walk you through Microsoft's procedure.

IT Cares has provided remote support since 2014 and on-site support in Quebec. We do not claim board-level repair. What we can do is diagnose by remote session where the Surface still starts, advise on data safety, help you find or confirm a BitLocker key, guide you through a recovery image install and refer you to a partner for hardware work. Call 1 (888) 711-9428 or book a session.
